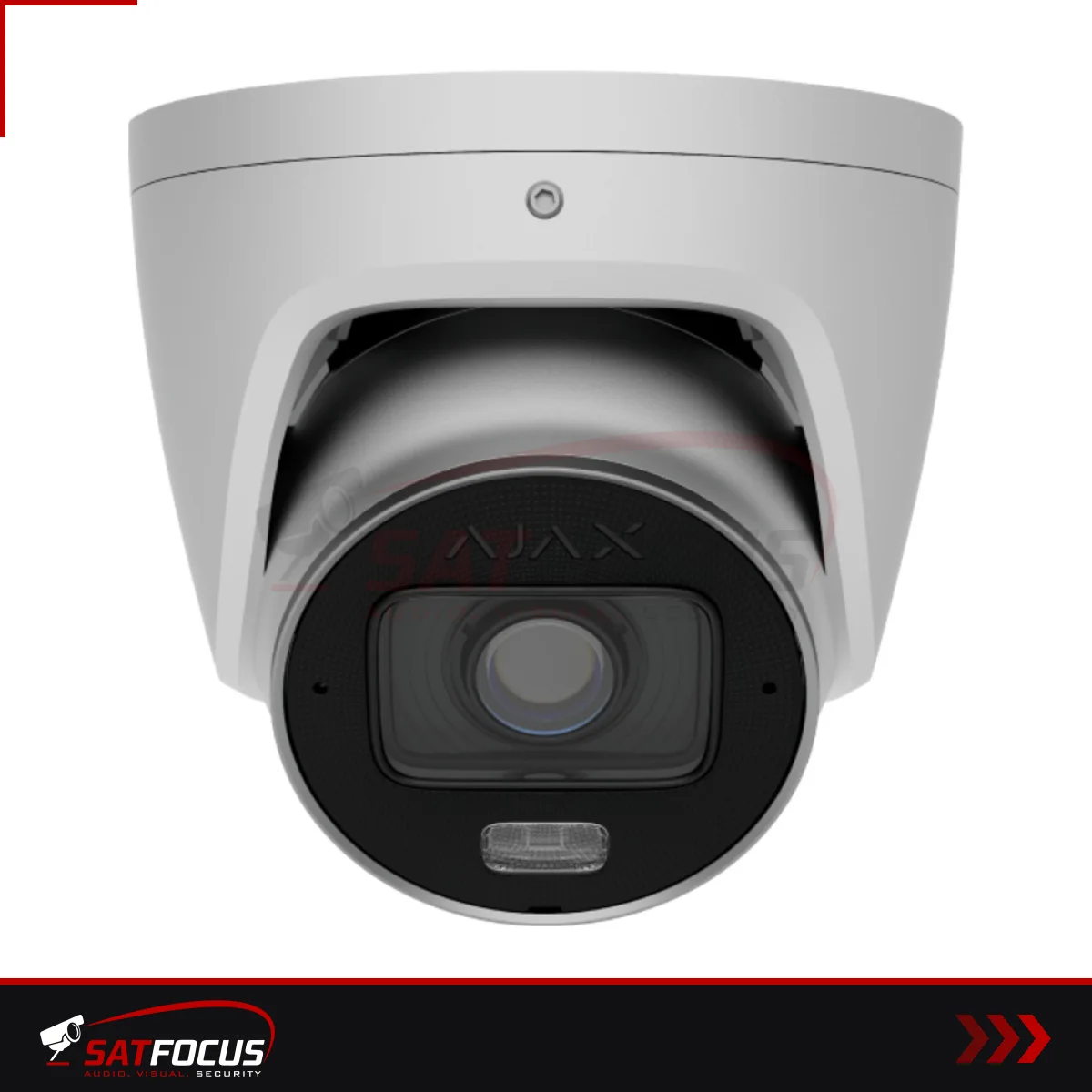

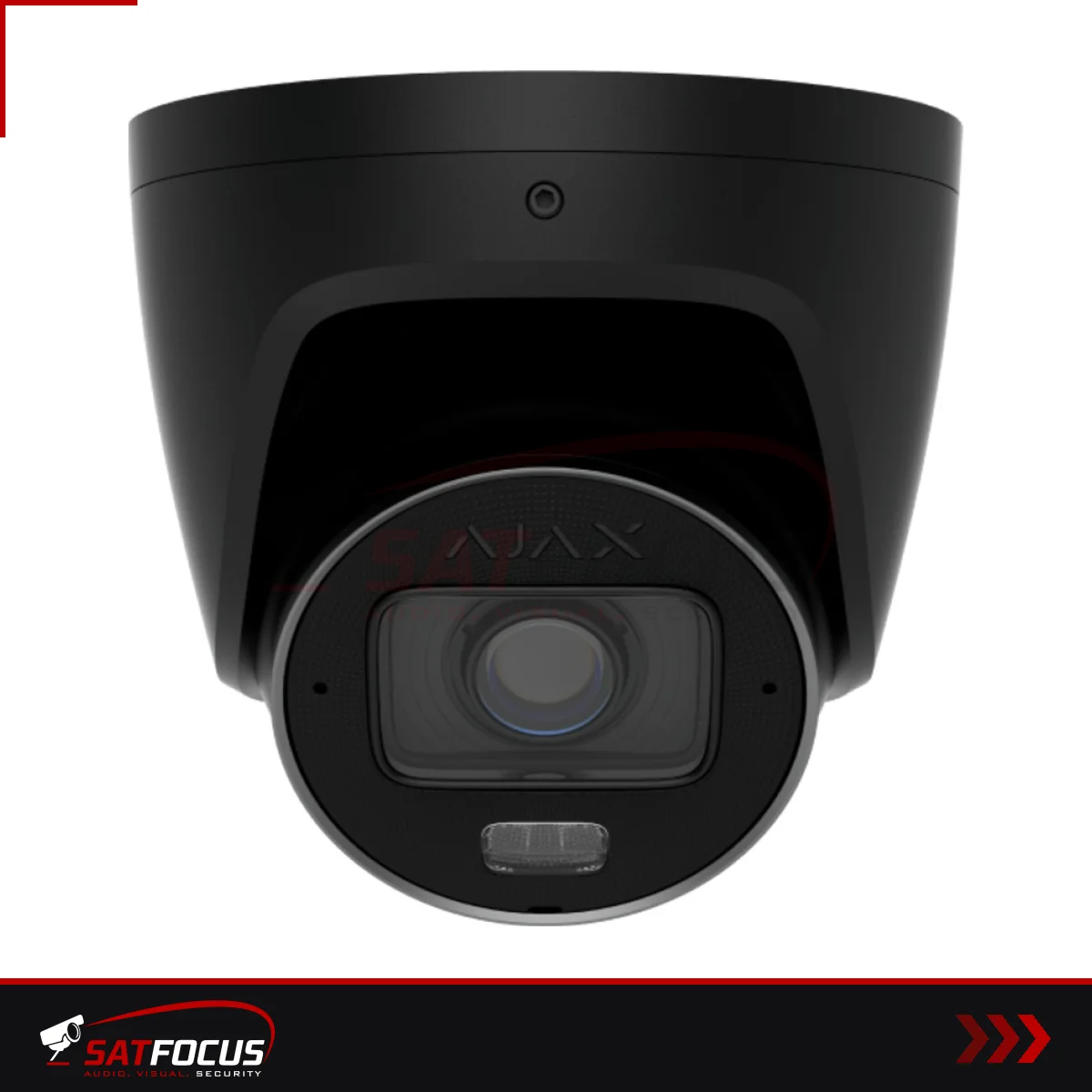

The Ajax TurretCam HLVF (8 Mp) IP Camera is an 8MP (4K) turret camera with built-in AI that tells people, animals and vehicles apart. Hybrid light switches from infrared to white light for colour footage at night, and the light doubles as a deterrent. It records to an Ajax NVR and works alongside the Ajax alarm, so a detector can trigger the camera to record.
We supply and install Ajax alarm and video systems across London and the Home Counties. Add this to your package and we will check everything works together before sending a written quote.
Key specifications
| Image sensor | 8 MP CMOS, 1/2.8" type |
|---|---|
| Lens focal length | 2.8–12.0 mm |
| Maximum aperture | f/1.6 |
| Lens iris type | fixed |
| Lens focal type | varifocal |
| Field of view | horizontal: 31°–111° vertical: 17°–57° diagonal: 35°–135° |
| Maximum illumination distance | white LED: up to 40 m; IR LED: up to 60 m Intelligent lighting control automatically adjusts the intensity of IR and white LEDs in real time to prevent overe… |
| Minimum illumination | color: 0.005 lx B/W: 0 lx |
| Signal-to-noise ratio (SNR) | more than 52 dB |
| Resolution | 8 MP (3840 × 2160); 6 MP (3072 × 1728); 5 MP (2944 × 1656); 5 MP (2880 × 1620); 5 MP (2688 × 1520); 5 MP (2592 × 1944); 4 MP (2560 × 1440); 3 MP (2304 × 1296… |
| Frame rate | up to 25 fps |
| Image rotation | 0°, 90°, 180°, 270° |
| Video codec | H.265, H.264 |
| Dynamic range | 120 dB (True WDR) |
| Storage | microSD Camera supports microSD cards up to 256 GB. The memory card must be Class V30 or faster. The card is not included in the complete set. |
| Built-in microphone | 1 With the corresponding settings applied, the camera can record audio at the scene. |
| Audio codec | G.711 µ-law, G.711 A-law, G.726, G.722 |
| Motion detection | The camera detects motion using software-based image frame analysis. |
| AI object detection | People Pets Vehicles Line-crossing |
| Port | 1 × RJ45 self-adaptive Ethernet (10/100 Mbps) |
Specifications are the manufacturer’s published figures.
