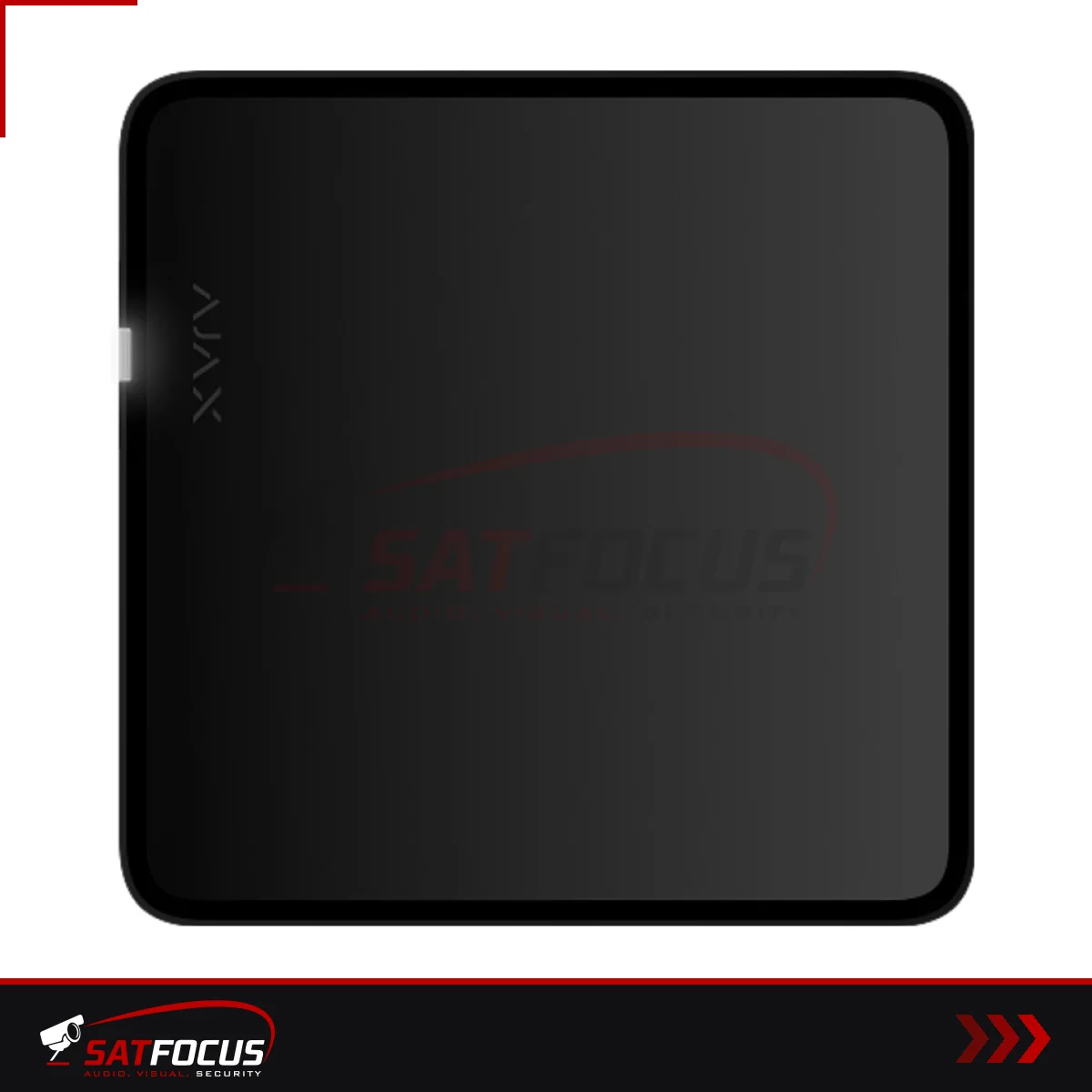

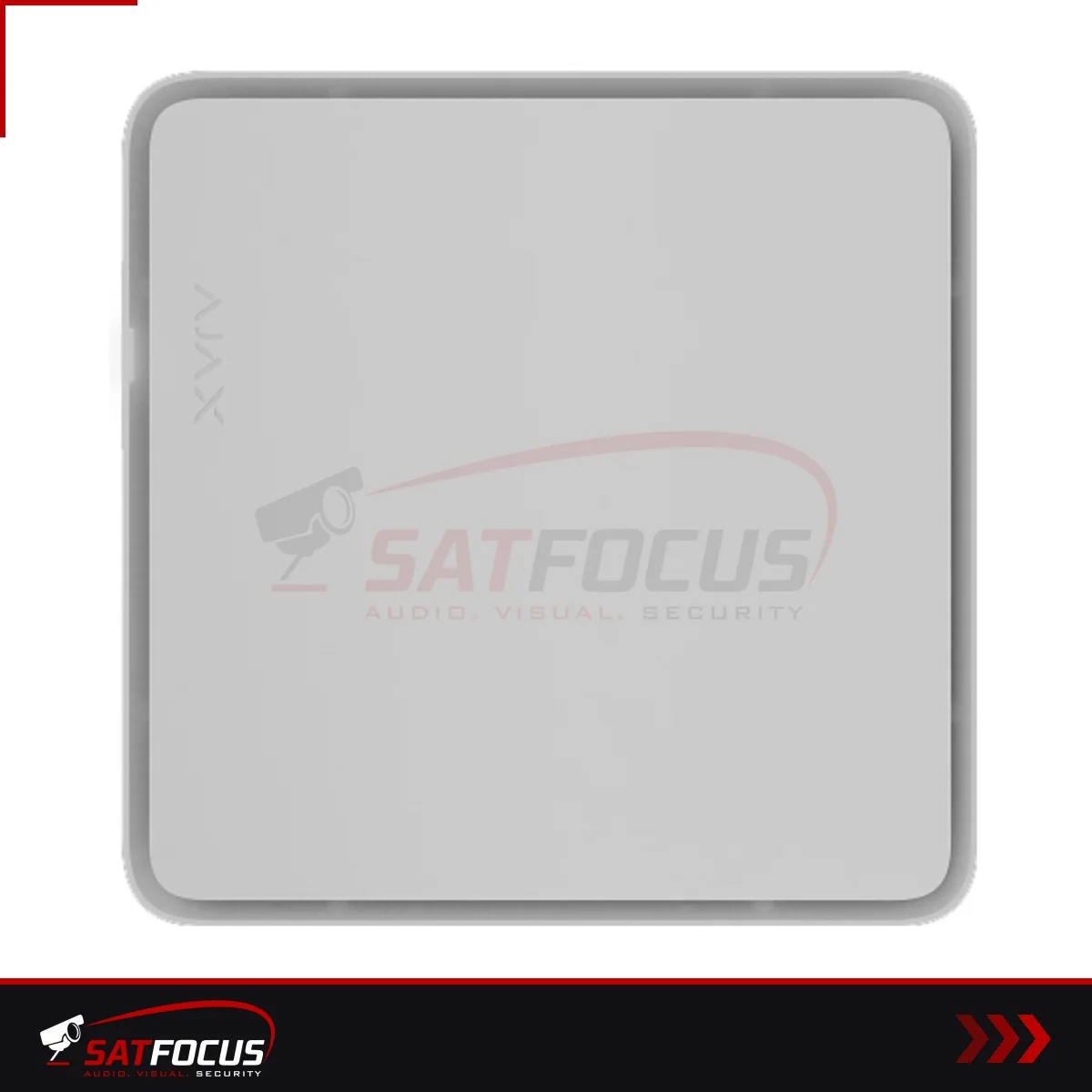

The Ajax NVR Network Video Recorder HDC (16-ch) records up to 16 Ajax and ONVIF IP cameras, with live view and playback in the Ajax app and an HDMI output for a monitor. PoE cameras need a PoE switch. Hard drive sold separately.
We supply and install Ajax alarm and video systems across London and the Home Counties. Add this to your package and we will check everything works together before sending a written quote.
Key specifications
| Video input | 16 channels |
|---|---|
| Recording resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI output resolution | 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720 px |
| Live view / playback resolution | 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
| Format | H.265, H.264, JetSparrow |
| Capability | 1 × channel at 8MP; 3 × channel at 5MP; 4 × channel at 4MP; 4 × channel at 1080p; 10 × channel at 720p; 16 × channel at 1024 × 576 px The width or height of … |
| Live view window division | templates: 1, 4, 9, 16, 5+1, 7+1 views custom: up to 10×10 views |
| Synchronous playback | 16 channels |
| Motion detection | Ajax camera: 16 channels NVR: 16 channels NVR HDC features built-in software to detect movement in the frame. It is possible to switch between image analysis… |
| AI object detection | Ajax camera: 16 channels |
| HDD/SSD | 1 × SATA: supports drive with up to 16 TB capacity (2.5″ or 3.5” form factor) HDD or SSD is not included. |
| Network | 1 × RJ-45 self-adaptive Ethernet (10/100 Mbps) |
| USB | rear panel: 1 × USB 2.0 (Type-A) side panel: 1 × USB 2.0 (Type-A) To connect a keyboard, mouse, or a USB flash drive. |
| Bandwidth | incoming: up to 80 Mbps outgoing: up to 40 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, DHCP, DNS |
| ONVIF® | conformant with ONVIF® Profile G and S The device implements ONVIF® H.265 (HEVC) encoding, transmission of motion detection events, control over Wide Dynamic… |
| Supported devices | Ajax cameras; IP cameras that conform to ONVIF® Profiles; RTSP |
| Built-in video management system | Integrated video wall interface with live camera feeds.; Smart event filters for quick access to relevant footage.; Interactive timeline with preview navigat… |
| Visual verification of Ajax system alarms | NVR HDC supports a scenario in which events triggered by Ajax detectors automatically highlight the corresponding camera feed on the video wall. This allows … |
| Privacy | Advanced privacy controls ensure a high level of personal data protection. All access rights — including those for mobile app users, installers, and monitori… |
Specifications are the manufacturer’s published figures.
