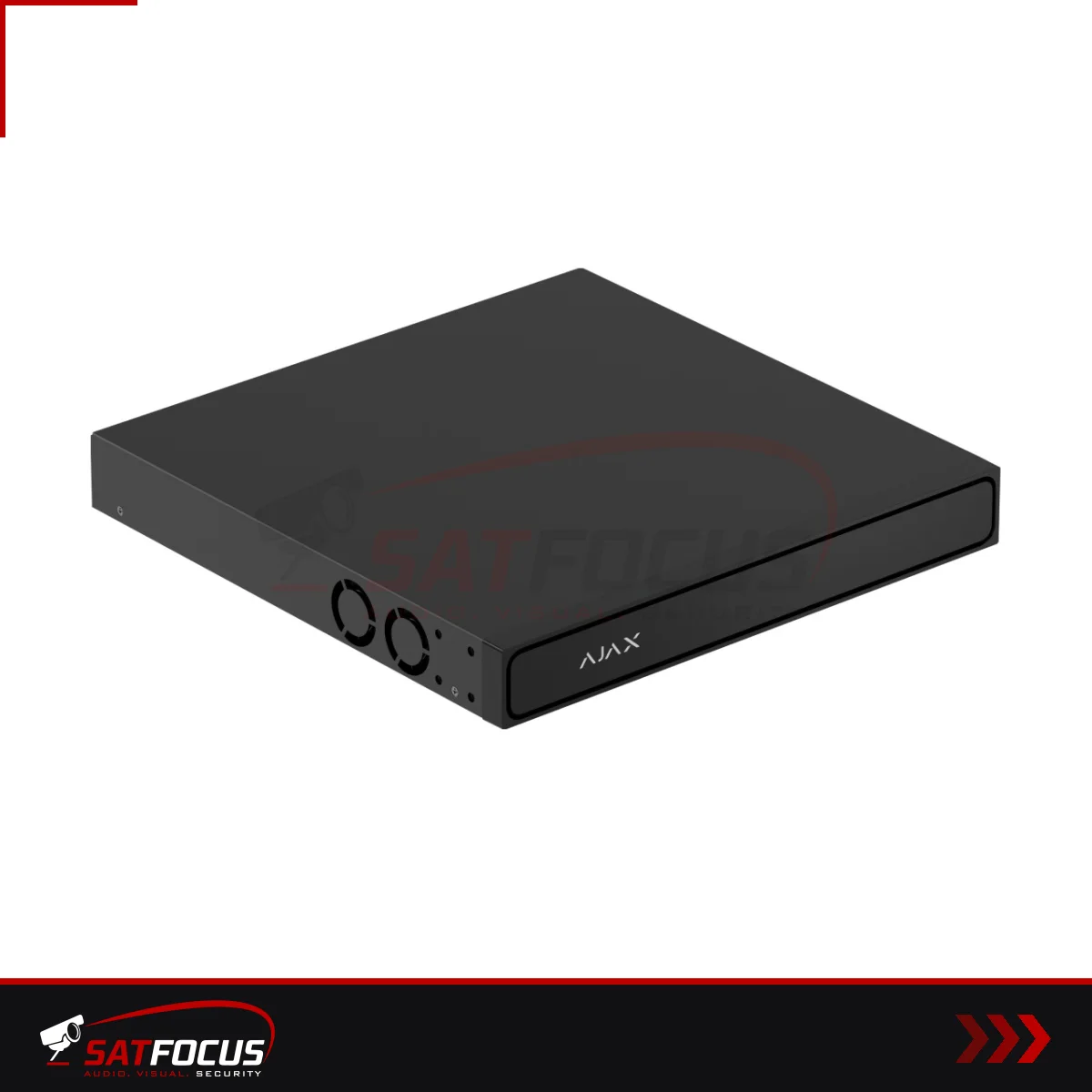

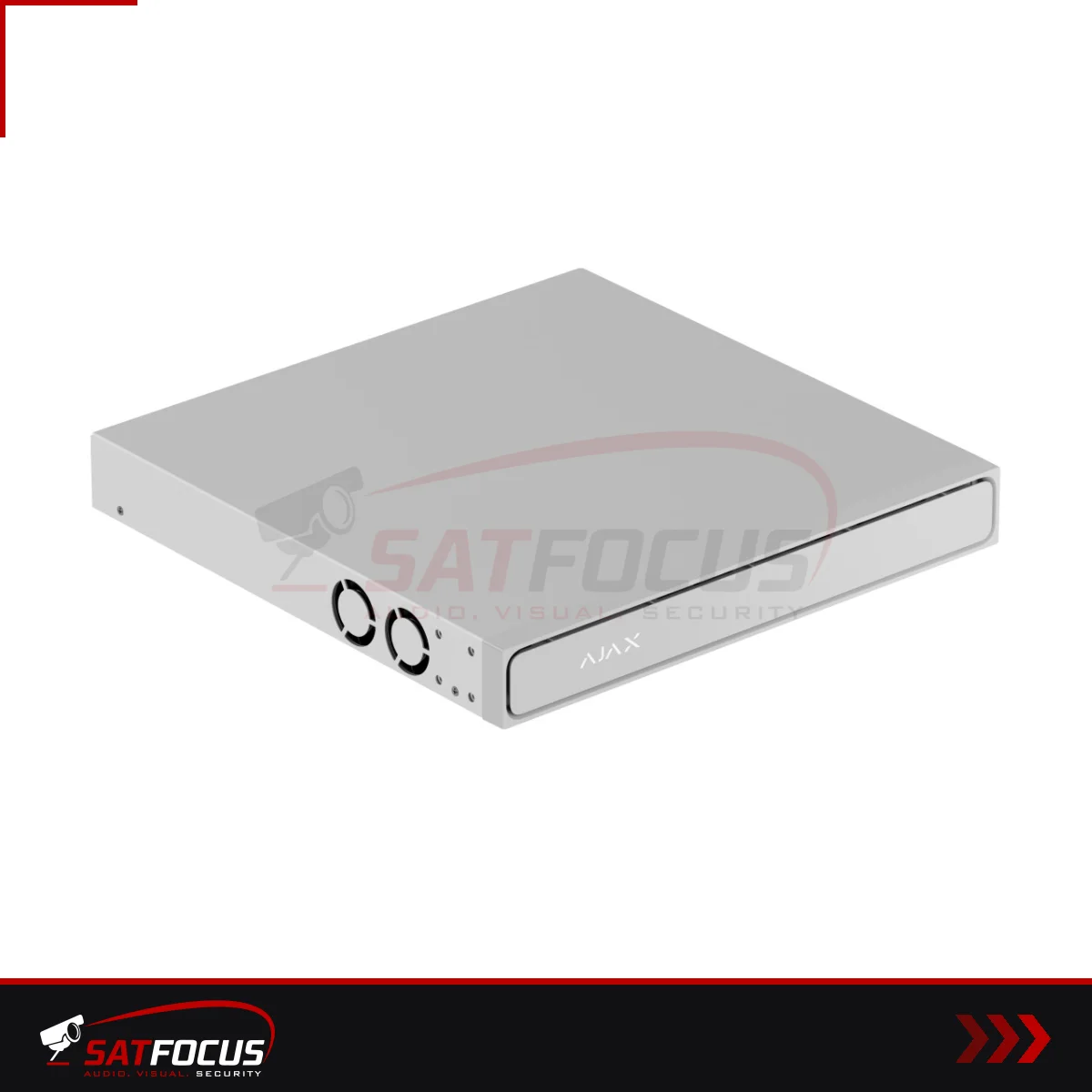

The Ajax NVR Network Video Recorder H2D8PAC (16-ch) records up to 16 Ajax and ONVIF IP cameras, with live view and playback in the Ajax app and an HDMI output for a monitor. It has 8 built-in PoE ports, so cameras plug straight in. Hard drive sold separately.
We supply and install Ajax alarm and video systems across London and the Home Counties. Add this to your package and we will check everything works together before sending a written quote.
Key specifications
| Video input | 16 channels |
|---|---|
| Recording resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI output resolution | 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 px |
| Live view / playback resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 720p, D1, VGA, CIF |
| Format | H.265, H.264, JetSparrow |
| Capability | 2 × channel at 4096 × 4096 px (25 fps); 4 × channel at 3840 × 2160 px (25 fps); 8 × channel at 2880 × 1620 px (25 fps); 10 × channel at 2560 × 1440 px (25 fps) |
| Live view window division | templates: 1, 4, 9, 16, 25, 5+1, 7+1, 12+1 views custom: up to 10×10 views |
| Synchronous playback | 4 channels |
| Motion detection | Ajax camera: 16 channels NVR: 16 channels NVR features built-in software to detect movement in the frame. It is possible to switch between image analysis by … |
| HDD/SSD | 2 × SATA III: supports drives with up to 16 TB capacity (2.5" and 3.5" form factors) Supports full hot-swap functionality. HDDs or SSDs are not included. |
| Network | 1 × RJ45 self-adaptive Ethernet (10/100/1000 Mbps) 8 × 802.3af/at PoE RJ45 fast Ethernet (10/100 Mbps) |
| USB | rear panel: 2 × USB 2.0 (Type-A) For connecting a keyboard, mouse, or USB Audio Device Class devices (Audio IN/Audio OUT). front panel: 1 × USB 2.0 (Type-A) … |
| PoE port | 8 × IEEE 802.3af/at (Alternative A, power over data pairs) |
| Maximum power per port | up to 25 W |
| Total power budget | up to 160 W |
| Bandwidth | incoming: up to 160 Mbps outgoing: up to 160 Mbps |
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, RTSP, UDP, DHCP, DNS, DDNS |
| ONVIF® | conformant with ONVIF® Profile G and S The device implements ONVIF® H.265 (HEVC) encoding, transmission of motion detection events, control over Wide Dynamic… |
| Supported devices | Ajax cameras; IP cameras that conform to ONVIF® Profiles; RTSP |
| Redundancy mode | Simultaneous recording of the same video streams to two storage devices to ensure data redundancy and reliability. |
Specifications are the manufacturer’s published figures.
