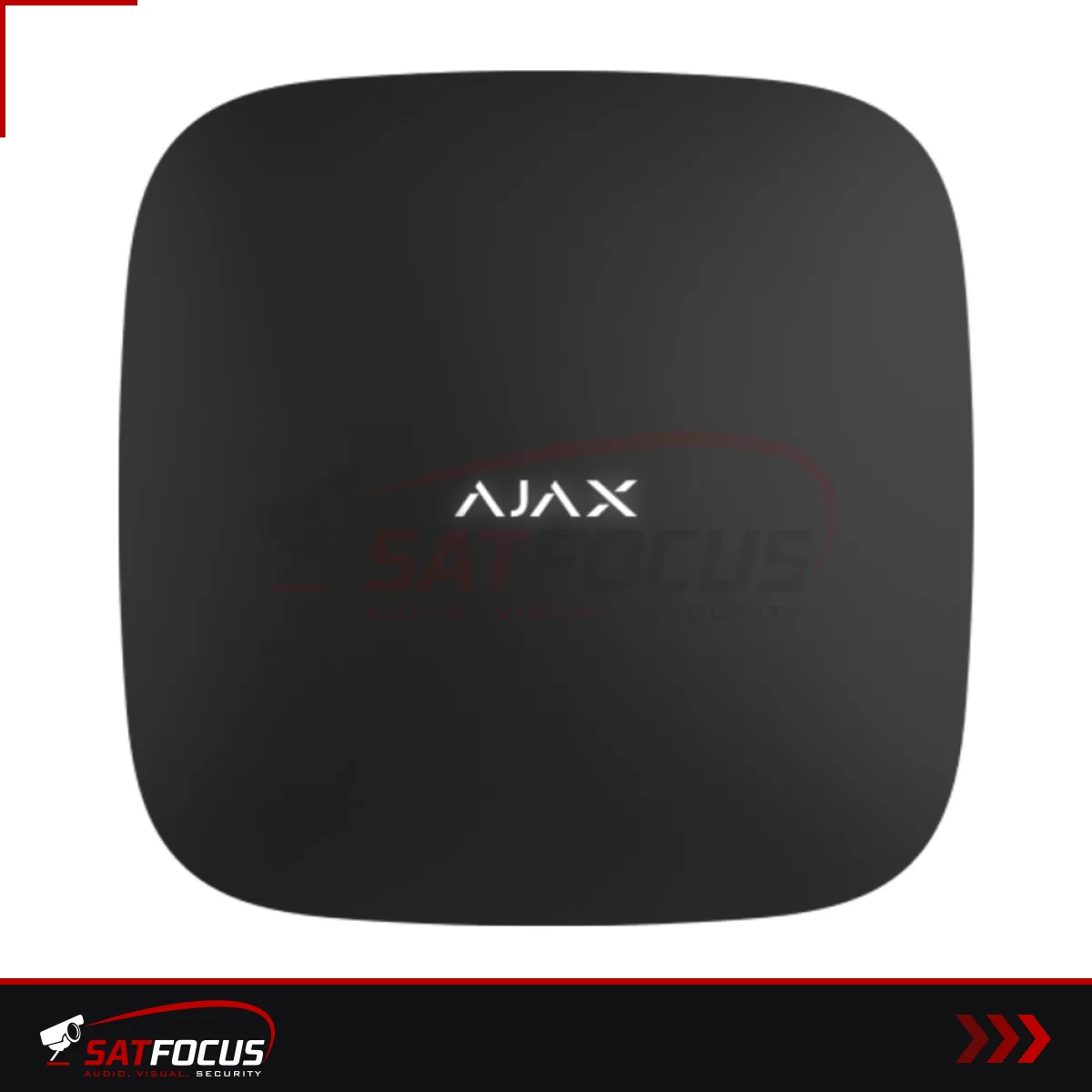

The Ajax Hub (4G) Control Panel is the heart of the Ajax system: every detector, keypad and siren connects to it, and it sends alerts to the Ajax app (and to a monitoring centre, if you choose one). This hub is wireless, using Ajax's encrypted two-way Jeweller radio.
We supply and install Ajax alarm and video systems across London and the Home Counties. Add this to your package and we will check everything works together before sending a written quote.
Key specifications
| Classification | The radio channel central unit with GSM and Ethernet modules |
|---|---|
| Maximum number of devices connected to the hub | 100 |
| Maximum number of cameras connected to the hub | 10 |
| Maximum number of users | 50 |
| Maximum number of rooms | 50 |
| Maximum number of groups | 9 |
| Mobile apps | iOS 9.1 and later, Android 4.1 and later |
| Communication channels | Ethernet, GSM (850/900/1800/1900 MHz) |
| Alarm signal | Delivery time: 0.15 s, Types of notifications: SMS message, call, push |
| Communication with Central Monitoring Station | Contact ID, SIA |
| Power supply | Mains supply: 110−240 V, Battery backup: Li-Ion 3 А⋅h, Up to 15 hours of offline operation when Ethernet is switched off |
| SIM card support | Micro SIM 4G |
| Operating temperature range | +5°С to +40°С |
| Anti-sabotage | Protection against fraud, Jamming detection, Tamper-resistant |
| Video surveillance | Up to 10 cameras or DVRs |
| Dimensions | 163mm x 163mm x 36mm |
| Weight | 360g |
Specifications are the manufacturer’s published figures.
